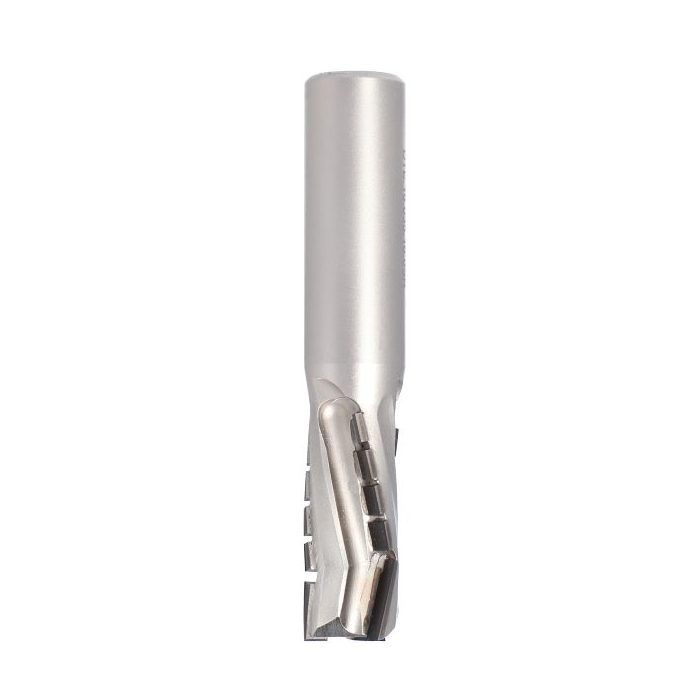

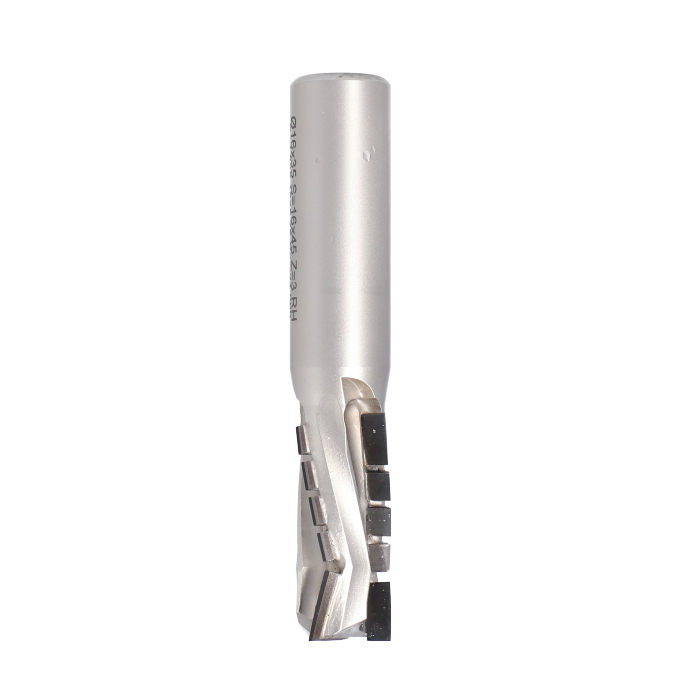

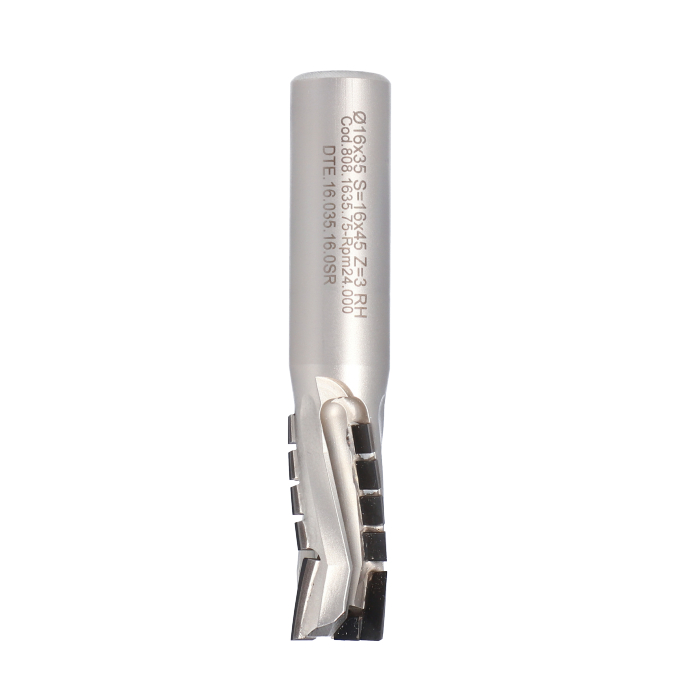

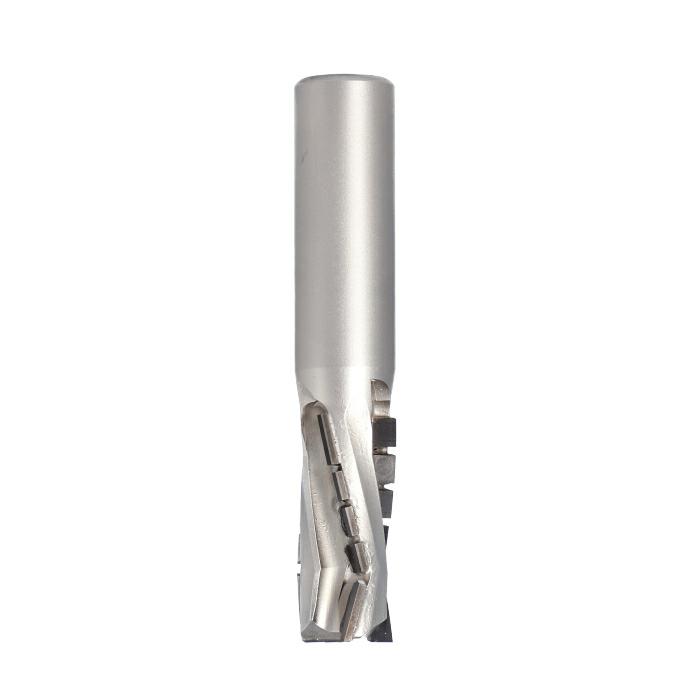

Three Flute Compression Segmented PCD (Diamond) Router Bit – High Feed Rates
The Three Flute Segmented Compression Diamond Bit is an excellent option for panel processing with diamond tooling. The tool features a hardened steel or densimet body with tips to form a 3 tooth configuration and boasts fast feed rates, excellent finish, and quiet running. For Diameter <12mm PCD Height is 2.5mm which, equates to 2-3 sharpenings depending on the use. For Diameter 13mm-19mm (1/2"-3/4") PCD Height is 4mm, which equates to 5-6 sharpenings depending on use. For Diameter >20mm the PCD Height is 4.5mm, which equates to 5-6 sharpenings depending on use. The tool comes equipped with a carbide plunge point. Common applications are jointing rabbeting, grooving, trimming and sizing material. recommended materials are laminated and unlaminated chipboard panels.
Price range: $344.00 through $895.00
Available Options
Refine results
Applied filters
Clear All| SKU | CED | CEL | SHANK | Z | OAL | TIPS | BODY | Price | Quantity | |
|---|---|---|---|---|---|---|---|---|---|---|
| RD2.50.100.50 | 1/2" | 1" | 1/2" | 3+1 | 80 | 11+1 | DENSIMET | $595.00 | ||
| RD2.50.125.50 | 1/2" | 1.25" | 1/2" | 3+1 | 80 | 13+1 | DENSIMET | $734.00 | ||
| RD2.75.100.75 | 3/4” | 1" | 3/4" | 3+1 | 80 | 13+1 | STEEL | $370.00 | ||
| RD2.75.125.75 | 3/4” | 1.25" | 3/4" | 3+1 | 80 | 15+1 | STEEL | $434.00 | ||
| RD2.75.150.75 | 3/4” | 1.5" | 3/4" | 3+1 | 80 | 15+1 | STEEL | $536.00 | ||
| RD2.75.175.75 | 3/4” | 1.75" | 3/4" | 3+1 | 80 | 21+1 | STEEL | $609.00 | ||
| RD2.75.200.75 | 3/4” | 2" | 3/4" | 3+1 | 80 | 31+1 | STEEL | $628.00 | ||
| RD2.10.22.12x40.70 | 10 | 22 | 12x40 | 3+1 | 70 | 9+1 | DENSIMET | $405.00 | ||
| RD2.12.22.12x40.70 | 12 | 22 | 12x40 | 3+1 | 70 | 8+1 | DENSIMET | $405.00 | ||
| RD2.12.27.12x40.78 | 12 | 27 | 12x40 | 3+1 | 78 | 11+1 | DENSIMET | $474.00 | ||
| RD2.12.35.12X40.85 | 12 | 35 | 12x40 | 3+1 | 85 | 13+1 | DENSIMET | $525.00 | ||
| RD2.16.20.20x50.78 | 16 | 20 | 20x50 | 3+1 | 78 | 9+1 | STEEL | $344.00 | ||
| RD2.16.25.16x50.85 | 16 | 25 | 16x50 | 3+1 | 85 | 12+1 | STEEL | $353.00 | ||
| RD2.16.25.20x50.82 | 16 | 25 | 20x50 | 3+1 | 82 | 10+1 | STEEL | $353.00 | ||
| RD2.16.35.16x45.88 | 16 | 35 | 16x45 | 3+1 | 88 | 15+1 | STEEL | $508.00 | ||
| RD2.16.35.20x50.99 | 16 | 35 | 20x50 | 3+1 | 99 | 19+1 | STEEL | $508.00 | ||
| RD2.18.25.20x50.87 | 18 | 25 | 20x50 | 3+1 | 87 | 10+1 | STEEL | $353.00 | ||
| RD2.18.35.20x50.93 | 18 | 35 | 20x50 | 3+1 | 93 | 15+1 | STEEL | $508.00 | ||
| RD2.18.45.20x50.103 | 18 | 45 | 20x50 | 3+1 | 103 | 21+1 | STEEL | $637.00 | ||
| RD2.20.25.20x50.90 | 20 | 25 | 20x50 | 3+1 | 90 | 13+1 | STEEL | $353.00 | ||
| RD2.20.35.20x50.93 | 20 | 35 | 20x50 | 3+1 | 93 | 15+1 | STEEL | $508.00 | ||
| RD2.20.45.20x50.103 | 20 | 45 | 20x50 | 3+1 | 103 | 21+1 | STEEL | $637.00 | ||
| RD2.20.50.20x50.117 | 20 | 50 | 20x50 | 3+1 | 117 | 31+1 | STEEL | $663.00 | ||
| RD2.20.55.20x50.112 | 20 | 55 | 20x50 | 3+1 | 112 | 27+1 | STEEL | $740.00 | ||
| RD2.20.65.20x50.124L | 20 | 65 | 20x50 | 3+1 | 124 | 31+1 | STEEL | $895.00 | ||
| RD2.20.65.20x50.124 | 20 | 65 | 20x50 | 3+1 | 124 | 31+1 | STEEL | $895.00 | ||
| RD2.25.25.20x50.89 | 25 | 25 | 20x50 | 3+1 | 89 | 13+1 | STEEL | $353.00 | ||
| RD2.25.35.25x50.102 | 25 | 35 | 25x50 | 3+1 | 102 | 15+1 | STEEL | $508.00 | ||
| RD2.25.65.20x50.130 | 25 | 65 | 20x50 | 3+1 | 130 | 31+1 | STEEL | $895.00 |
