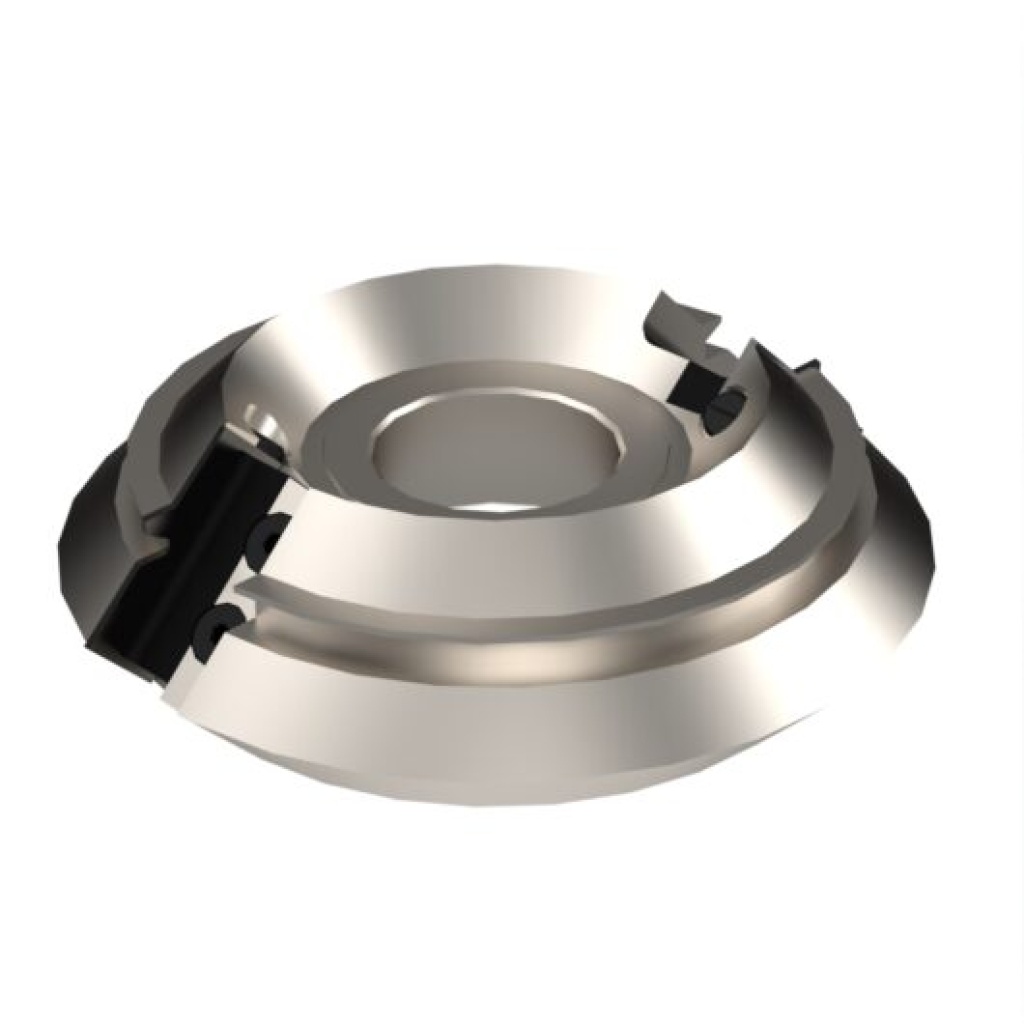

Edge Profiling Insert Cutterhead
$747.02 – $1,303.66
Edge Profiling Insert Cutterhead with replaceable carbide insert knives are an excellent option for a production shop that wants the convenience of replaceable inserts and repeatability. The knife can have various profile adjustments limited by the steel cutter body. This cutter comes standard with 4 wings and is an extremely effective at machining hardwood, soft wood and MDF. We can manufacture with 2,3,4,6 wings. Lead time is 2 working weeks for production. Additional profiles can be generated and have a lead time of 3-4 weeks.
Available Options
Refine results
Applied filters
Clear All| SKU | D | B | Z | BORE | Price | Quantity | |
|---|---|---|---|---|---|---|---|
| ICH.100.001 | 80 | 12 | 4 | 30-35-40-50 | $747.02 | ||
| ICH.100.002 | 100 | 12 | 4 | 30-35-40-50 | $759.81 | ||
| ICH.100.003 | 120 | 12 | 4 | 30-35-40-50 | $779.01 | ||
| ICH.100.004 | 150 | 12 | 4 | 30-35-40-50 | $811.01 | ||
| ICH.100.005 | 180 | 12 | 4 | 30-35-40-50 | $830.20 | ||
| ICH.100.007 | 250 | 12 | 4 | 30-35-40-50 | $919.77 | ||
| ICH.100.008 | 300 | 12 | 4 | 30-35-40-50 | $983.76 | ||
| ICH.100.009 | 80 | 20 | 4 | 30-35-40-50 | $779.01 | ||
| ICH.100.010 | 100 | 20 | 4 | 30-35-40-50 | $791.81 | ||
| ICH.100.011 | 120 | 20 | 4 | 30-35-40-50 | $811.01 | ||
| ICH.100.012 | 150 | 20 | 4 | 30-35-40-50 | $843.00 | ||
| ICH.100.013 | 180 | 20 | 4 | 30-35-40-50 | $862.20 | ||
| ICH.100.014 | 220 | 20 | 4 | 30-35-40-50 | $881.37 | ||
| ICH.100.015 | 250 | 20 | 4 | 30-35-40-50 | $983.76 | ||
| ICH.100.016 | 300 | 20 | 4 | 30-35-40-50 | $1,047.73 | ||
| ICH.100.017 | 80 | 30 | 4 | 30-35-40-50 | $811.01 | ||
| ICH.100.018 | 100 | 30 | 4 | 30-35-40-50 | $823.80 | ||
| ICH.100.019 | 120 | 30 | 4 | 30-35-40-50 | $843.00 | ||
| ICH.100.020 | 150 | 30 | 4 | 30-35-40-50 | $874.99 | ||
| ICH.100.021 | 180 | 30 | 4 | 30-35-40-50 | $894.19 | ||
| ICH.100.022 | 220 | 30 | 4 | 30-35-40-50 | $951.77 | ||
| ICH.100.023 | 250 | 30 | 4 | 30-35-40-50 | $1,015.74 | ||
| ICH.100.024 | 300 | 30 | 4 | 30-35-40-50 | $1,111.72 | ||
| ICH.100.025 | 80 | 40 | 4 | 30-35-40-50 | $836.59 | ||
| ICH.100.026 | 100 | 40 | 4 | 30-35-40-50 | $855.79 | ||
| ICH.100.027 | 120 | 40 | 4 | 30-35-40-50 | $874.99 | ||
| ICH.100.028 | 150 | 40 | 4 | 30-35-40-50 | $906.98 | ||
| ICH.100.029 | 180 | 40 | 4 | 30-35-40-50 | $926.17 | ||
| ICH.100.030 | 220 | 40 | 4 | 30-35-40-50 | $983.76 | ||
| ICH.100.031 | 250 | 40 | 4 | 30-35-40-50 | $1,047.73 | ||
| ICH.100.032 | 300 | 40 | 4 | 30-35-40-50 | $1,175.70 | ||
| ICH.100.033 | 80 | 50 | 4 | 30-35-40-50 | $874.99 | ||
| ICH.100.034 | 100 | 50 | 4 | 30-35-40-50 | $887.78 | ||
| ICH.100.035 | 120 | 50 | 4 | 30-35-40-50 | $906.98 | ||
| ICH.100.036 | 150 | 50 | 4 | 30-35-40-50 | $938.96 | ||
| ICH.100.037 | 180 | 50 | 4 | 30-35-40-50 | $958.16 | ||
| ICH.100.038 | 220 | 50 | 4 | 30-35-40-50 | $1,041.33 | ||
| ICH.100.039 | 250 | 50 | 4 | 30-35-40-50 | $1,079.72 | ||
| ICH.100.040 | 300 | 50 | 4 | 30-35-40-50 | $1,207.69 | ||
| ICH.100.041 | 80 | 60 | 4 | 30-35-40-50 | $919.77 | ||
| ICH.100.042 | 100 | 60 | 4 | 30-35-40-50 | $932.57 | ||
| ICH.100.043 | 120 | 60 | 4 | 30-35-40-50 | $951.77 | ||
| ICH.100.044 | 150 | 60 | 4 | 30-35-40-50 | $983.76 | ||
| ICH.100.045 | 180 | 60 | 4 | 30-35-40-50 | $1,002.95 | ||
| ICH.100.046 | 220 | 60 | 4 | 30-35-40-50 | $1,066.93 | ||
| ICH.100.047 | 250 | 60 | 4 | 30-35-40-50 | $1,111.72 | ||
| ICH.100.048 | 300 | 60 | 4 | 30-35-40-50 | $1,239.69 | ||
| ICH.100.049 | 80 | 80 | 4 | 30-35-40-50 | $1,002.95 | ||
| ICH.100.050 | 100 | 80 | 4 | 30-35-40-50 | $1,015.74 | ||
| ICH.100.051 | 120 | 80 | 4 | 30-35-40-50 | $1,034.94 | ||
| ICH.100.052 | 150 | 80 | 4 | 30-35-40-50 | $1,066.93 | ||
| ICH.100.053 | 180 | 80 | 4 | 30-35-40-50 | $1,086.13 | ||
| ICH.100.054 | 220 | 80 | 4 | 30-35-40-50 | $1,143.71 | ||
| ICH.100.055 | 250 | 80 | 4 | 30-35-40-50 | $1,175.70 | ||
| ICH.100.056 | 300 | 80 | 4 | 30-35-40-50 | $1,303.66 |
