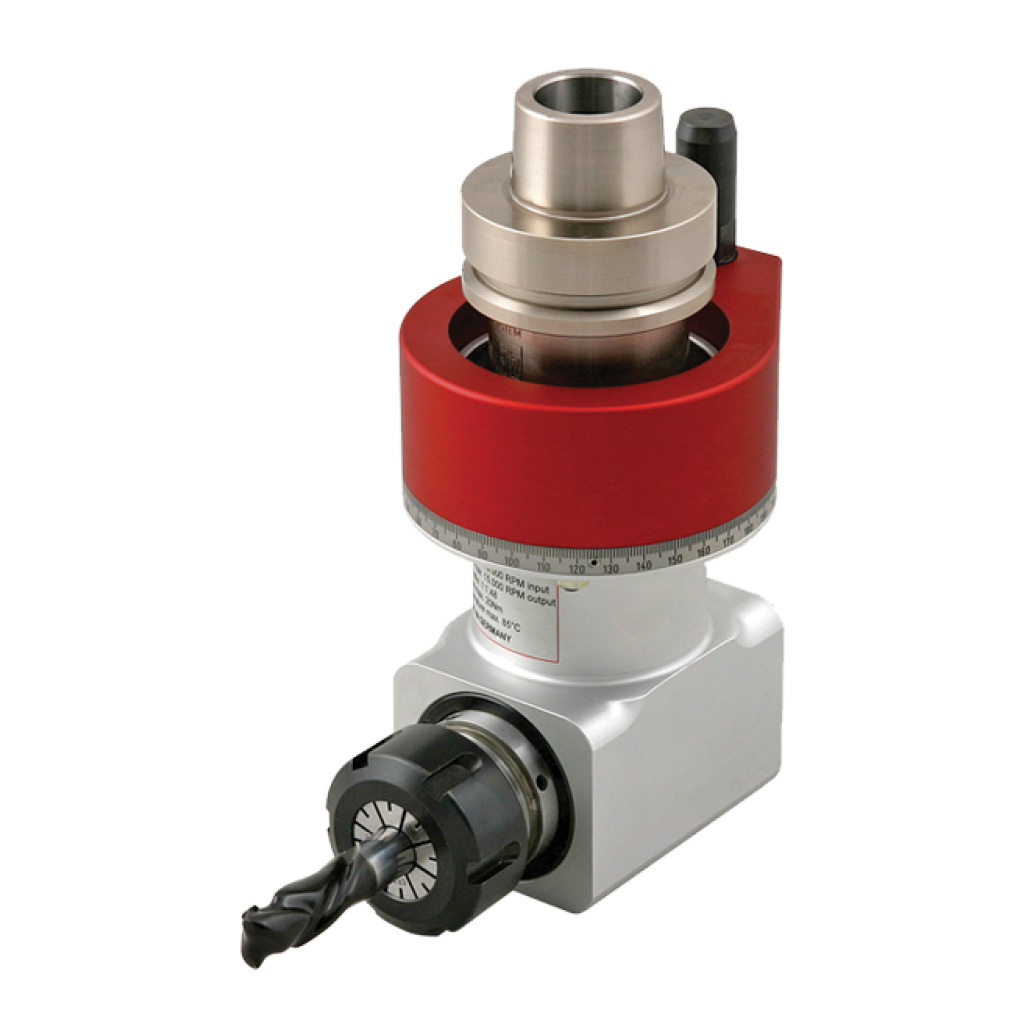

Variable Aggregate Heads FunctionLINE
FunctionLINE Variable Aggregate Heads excel in various tasks, such as routing, boring, mortising, and sawing. These aggregates provide versatile cutting capabilities, allowing for angle adjustments from 0 to 100 degrees. Additionally, you can equip them with an ER25 output or a Combi saw output, which is compatible with 45mm or 52mm bolt circles and supports the modular system.
Additionally, FunctionLINE Aggregates stand out for their flexibility, featuring grease lubrication for smooth and reliable performance. Designed to perform exceptionally with wood, non-wood composites, and plastics, QIC Tools aggregate heads are custom-engineered to meet the unique demands of your operations.
How to Order
Each of our aggregate heads is individually hand-assembled based on your unique requirements. Fill out the form below or call us directly to speak with our aggregate head specialist. Simply provide us with your router manufacturer, spindle type, and the operation and material being used.
Call QIC Tools at: (770) 282-1156
| Feature | Data |
|---|---|
| Max Speed Input (Spindle) | 15,000 R.P.M. |
| Max Speed Output (Tool) | 15,000 R.P.M. |
| Max Torque | 14.75 ft/lbs |
| Gear Ratio | 1:1 |
| Lubrication | Grease |
| Max Temp. | 85° C / 185° F |
| Rotation | 360° |
| Output Direction | Opposite of machine spindle |
| Tool Interfaces | K1, K2 (Vario) & K1, K2, Modular (Viso) |
This product is currently out of stock and unavailable.
