Soft-Touch Aggregate Heads FunctionLINE

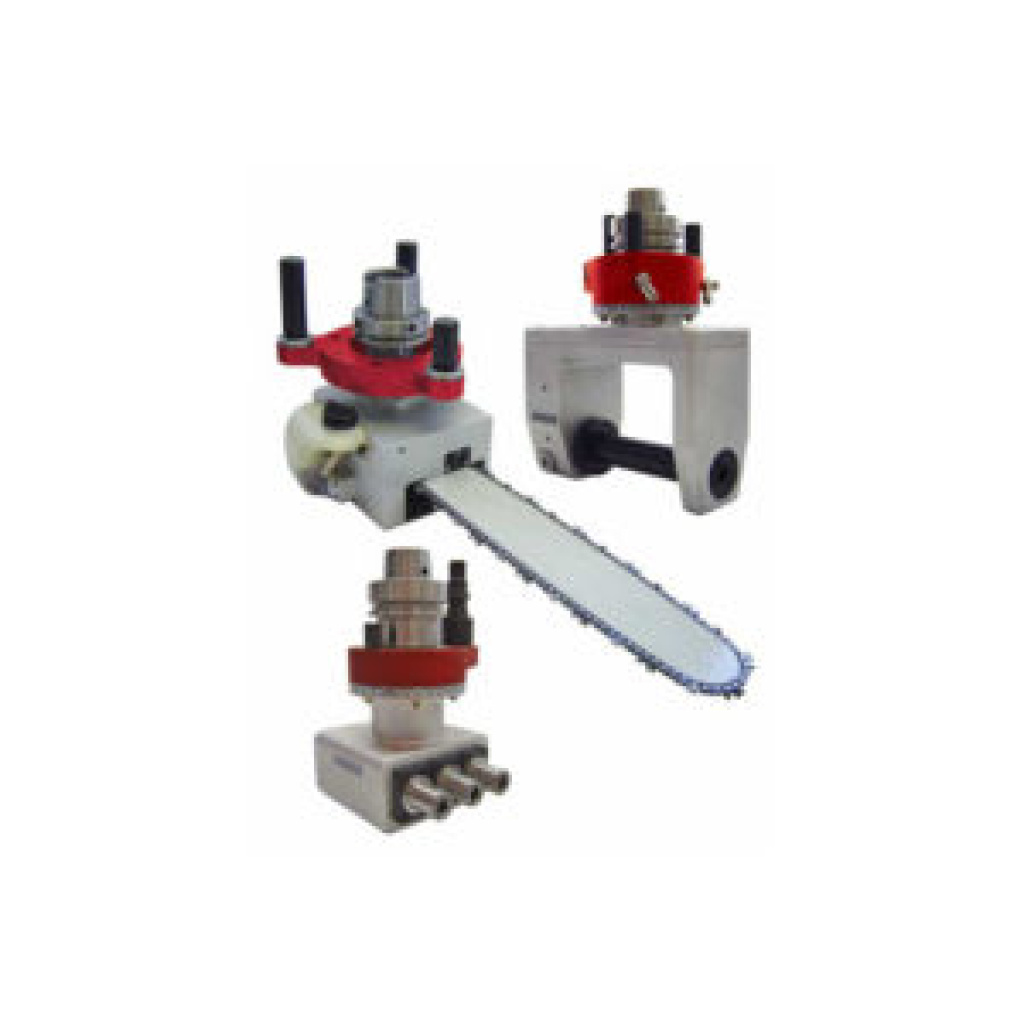

FunctionLINE Soft-Touch Aggregate Heads perform exceptionally well in routing, boring, mortising, and sawing, delivering precise contour following. Moreover, the Soft-Touch feature automatically compensates for material variances of up to 10mm, ensuring consistent cutting depth. In addition, you can adjust the floating pressure between 1/4 lb. and 20 lbs., while compressed air effectively removes sawdust during operation.
Furthermore, FunctionLINE Aggregates stand out as some of the most versatile in our range. They incorporate grease lubrication, ensuring smooth and reliable performance. These aggregates are highly efficient when working with wood, non-wood composites, and plastics. Additionally, QIC Tools carefully crafts each aggregate head to meet the specific demands of your operations.
How to Order
Each of our aggregate heads is individually hand-assembled based on your unique requirements. Fill out the form below or call us directly to speak with our aggregate head specialist. Simply provide us with your router manufacturer, spindle type, and the operation and material being used.
Call QIC Tools at: (770) 282-1156
| Feature | Data |
|---|---|
| Max Speed Input (Spindle) | 18,000 R.P.M. (24,000 R.P.M option) |
| Floating Pressure | Adjustable from 1/4 lb. to 20 lbs. |
| Floating Range | 10 mm (with 10mm adjustment) |
| Floating Bell | 70mm deep x 105 mm I.D. |
| Max Torque | 10 ft/lbs |
| Gear Ratio | 1:01 |
| Lubrication | Grease |
| Max Temp. | 85° C / 185° F |
| Output Direction | Same as machine spindle |
| Tool Interfaces | Modular |
This product is currently out of stock and unavailable.
