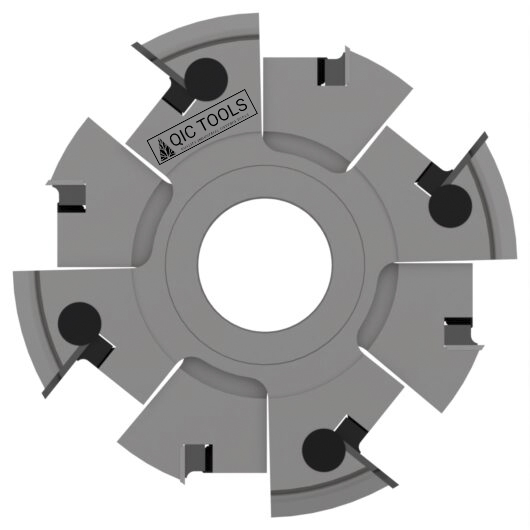

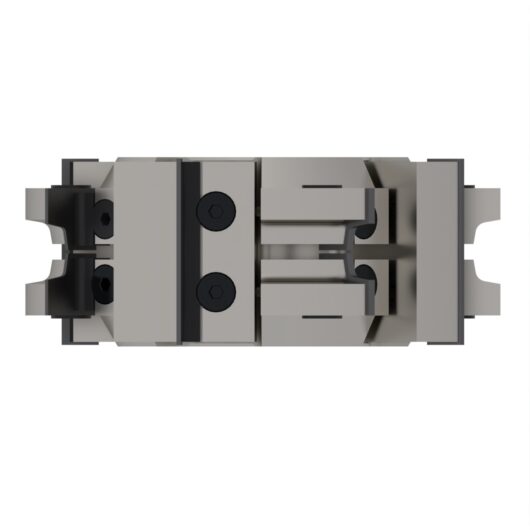

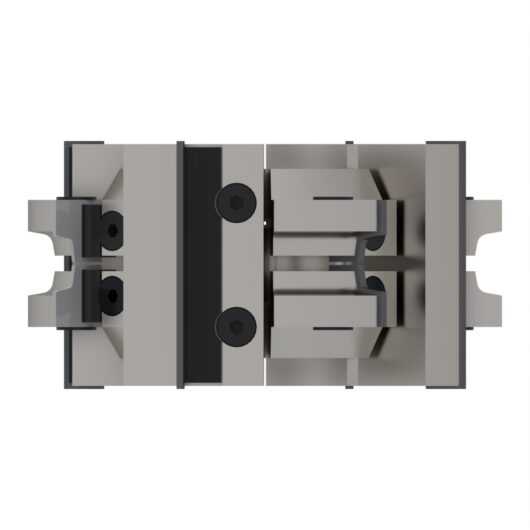

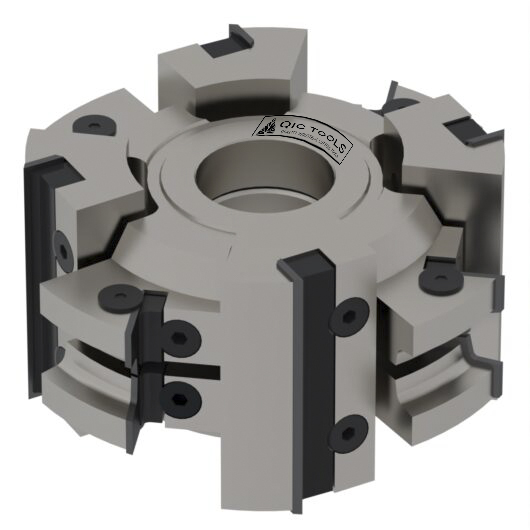

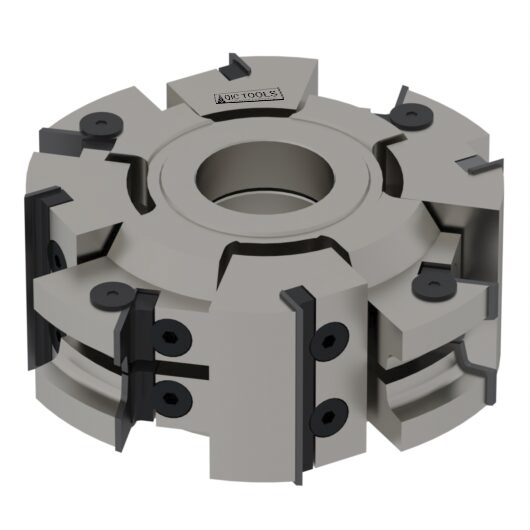

Adjustable Rounding Or Beveling Insert Cutterhead
Adjustable Rounding Or Beveling Insert Cutterhead with replaceable carbide insert knives are an excellent option for a production shop that wants the convenience of replaceable inserts and repeatability. The cutter head has options of radius from 2mm to 5mm OR with a 45 degree bevel. This cutter comes standard with 4 wings for moulder machine and 2 wings for shaper machine. The tool comes standard with R3 inserts. other executions can be purchased separately. Lead time is 2 working weeks for production. Additional profiles can be generated and have a lead time of 3-4 weeks.
Price range: $1,628.28 through $2,382.00
Available Options
Refine results
Applied filters

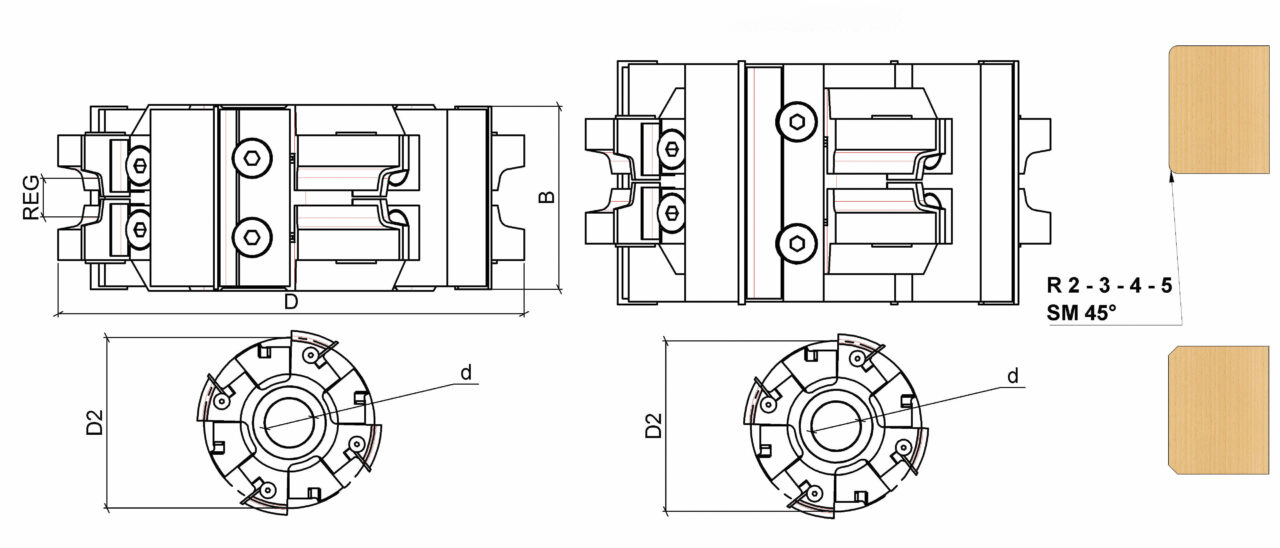

Clear All| SKU | D | Z | DRW | ROT | REG | RIF | D2 | BORE | Price | Quantity | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| ICH.145.005 | 166 | 4 | 106744 | Dx Rh - Sx Lh | 16-80 | R 2 | 140 | 1-13/16" | $2,382.00 | ||
| ICH.145.001 | 156 | 4 | 96019 | Dx Rh - Sx Lh | 16-60 | R 2 | 140 | 30 35 40 50 | $2,124.18 | ||
| ICH.145.002 | 156 | 4 | 96020 | Dx Rh - Sx Lh | 16-80 | R 2 | 140 | 30 35 40 50 | $1,628.28 | ||
| ICH.145.003 | 156 | 2 | 96150 | Dx Rh - Sx Lh | 16-60 | R 2 | 140 | 30 35 40 50 | $2,130.00 | ||
| ICH.145.004 | 156 | 2 | 96151 | Dx Rh - Sx Lh | 16-80 | R 2 | 140 | 30 35 40 50 | $2,130.00 |
